Project / Refrigeration

McDonald's — Nadah Plaza

Riyadh, Saudi Arabia — a complete cold-chain installation covering a walk-in freezer and a walk-in chiller, delivered from site survey through to commissioning and handover.

Nadah Plaza restaurant building exterior with the stone facade under construction and scaffolding in place
Overview

Project overview

Blue Star Modern Solutions delivered the cold-chain installation for the McDonald's Nadah Plaza restaurant, including a dedicated walk-in freezer and walk-in chiller.

Both rooms were installed, tested and commissioned as a single coordinated package, so the restaurant received working refrigeration with one point of accountability.

  • Site survey and layout coordination
  • Equipment supply
  • Insulated room installation
  • Refrigeration piping
  • Condensing units
  • Evaporators
  • Electrical connections
  • Controls
  • Panel-board coordination
  • Testing
  • Commissioning
  • Final handover
Delivery

Scope of work

Site survey & layout

Survey of the restaurant area, room sizing and layout coordination against the kitchen plan and available services.

Equipment supply

Supply of the insulated panels, condensing units, Friga-Bohn evaporators and Copeland compressors specified for each room.

Installation

Insulated room build, refrigeration piping, condensing unit and evaporator installation, electrical connections, controls and panel-board coordination.

Testing & commissioning

Leak testing, evacuation and charging, temperature pull-down, control settings and final handover to the restaurant team.

Equipment

Technical specifications

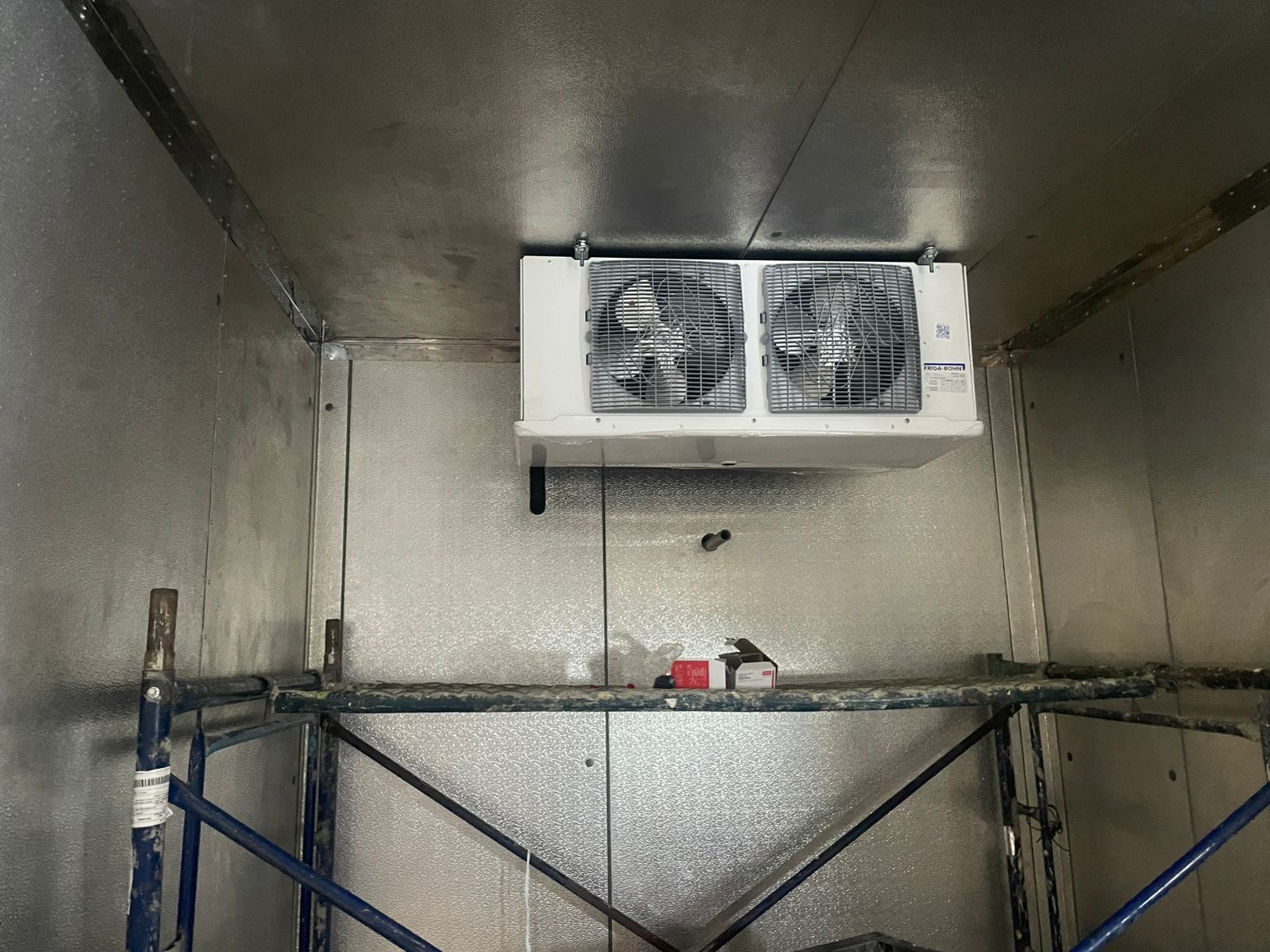

Twin-fan Friga-Bohn ceiling unit cooler installed in the insulated walk-in freezer at Nadah Plaza

Walk-in freezer / cold room

Low-temperature room for frozen product storage.

Condensing unit
5 HP
Evaporator
Friga-Bohn
Compressor
Copeland

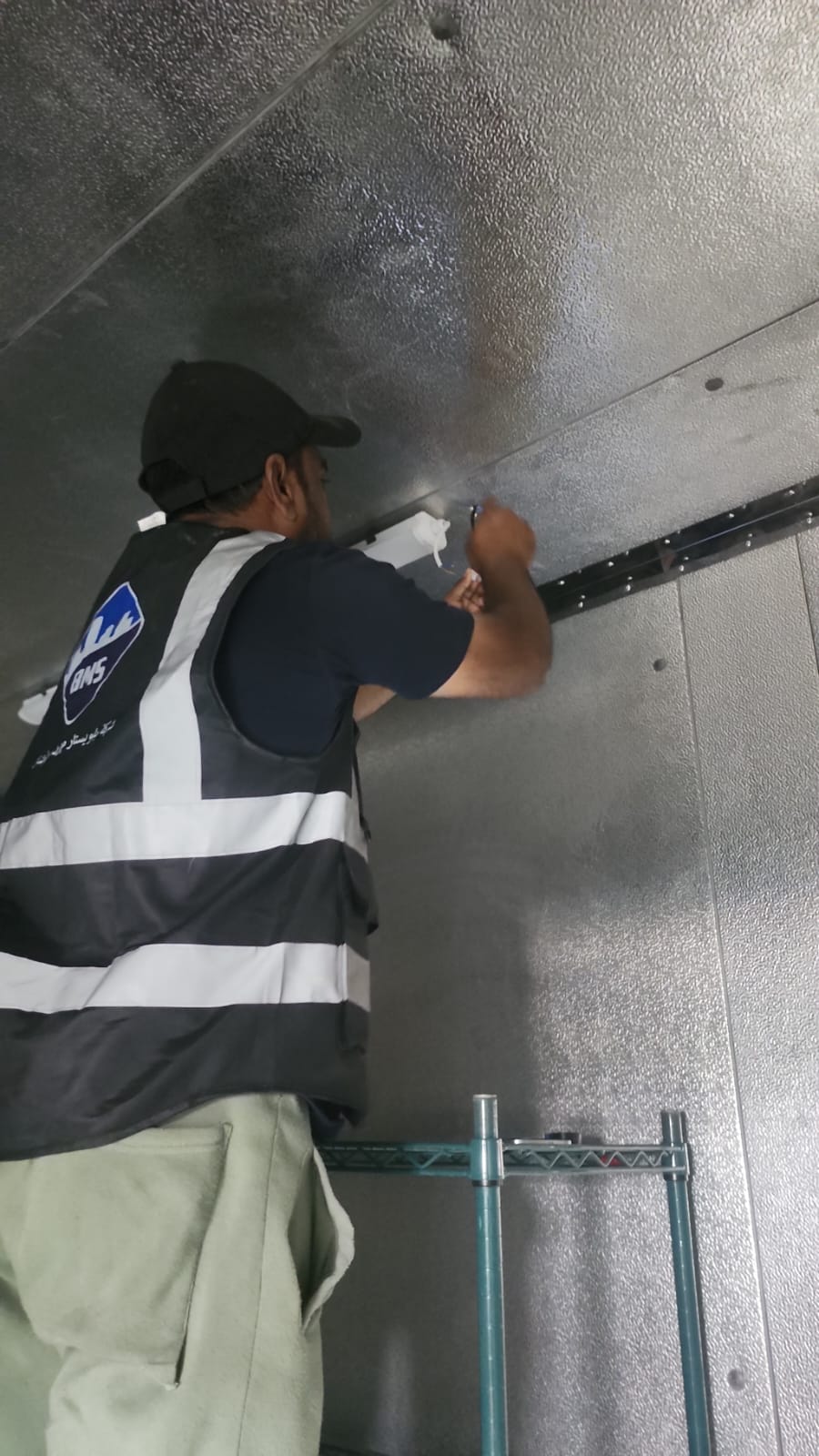

BMS technician fitting the ceiling light inside the insulated walk-in chiller at Nadah Plaza

Walk-in chiller

Medium-temperature room for chilled product storage.

Condensing unit
2 HP
Evaporator
Friga-Bohn
Compressor
Copeland
On site

Project gallery

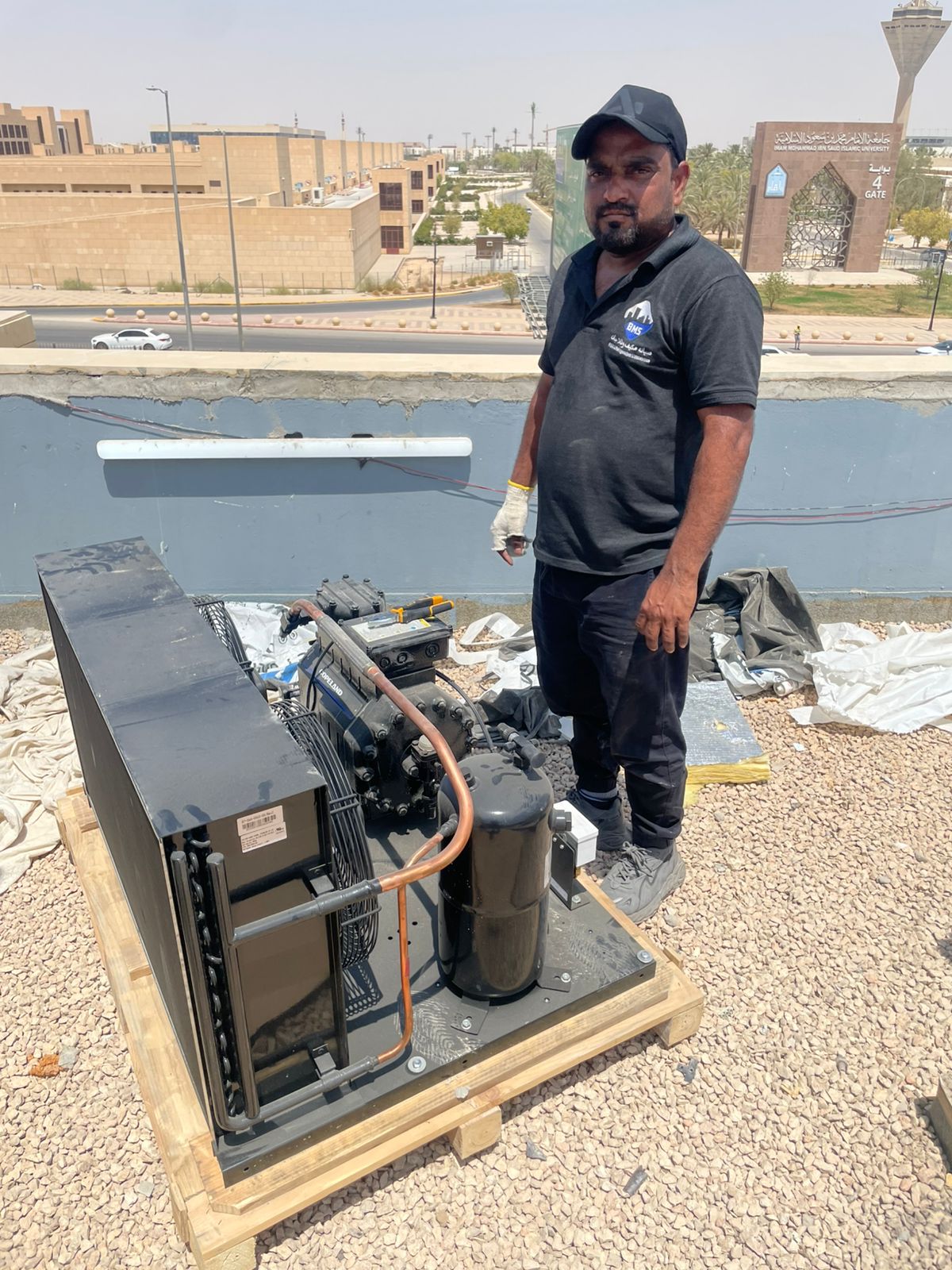

BMS technician beside a Copeland condensing unit delivered to the Nadah Plaza rooftop
Copeland condensing unit received and checked on site

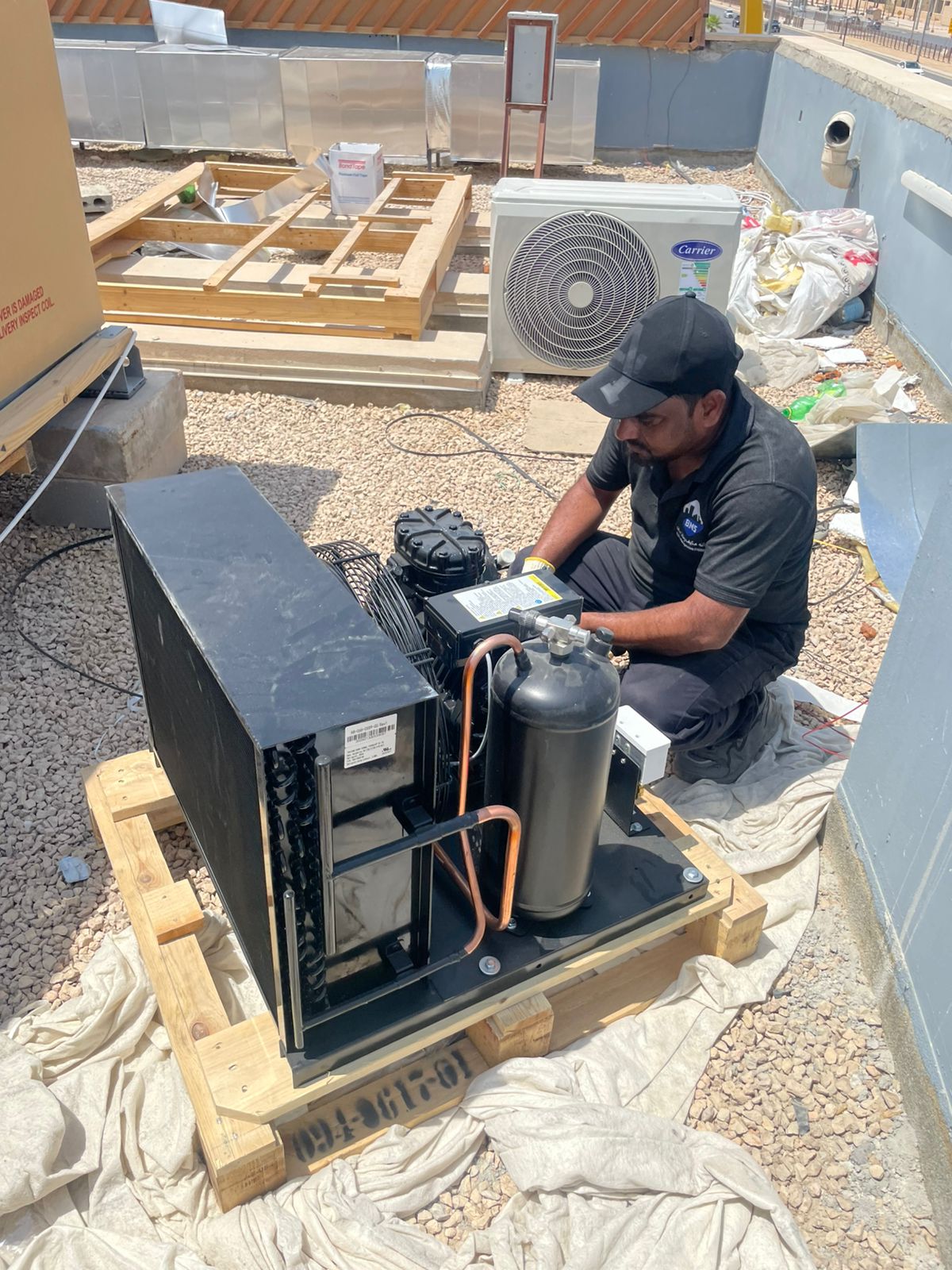

BMS technician preparing an unpacked refrigeration condensing unit on the rooftop plant deck
Condensing unit unpacked and set out on the rooftop plant deck

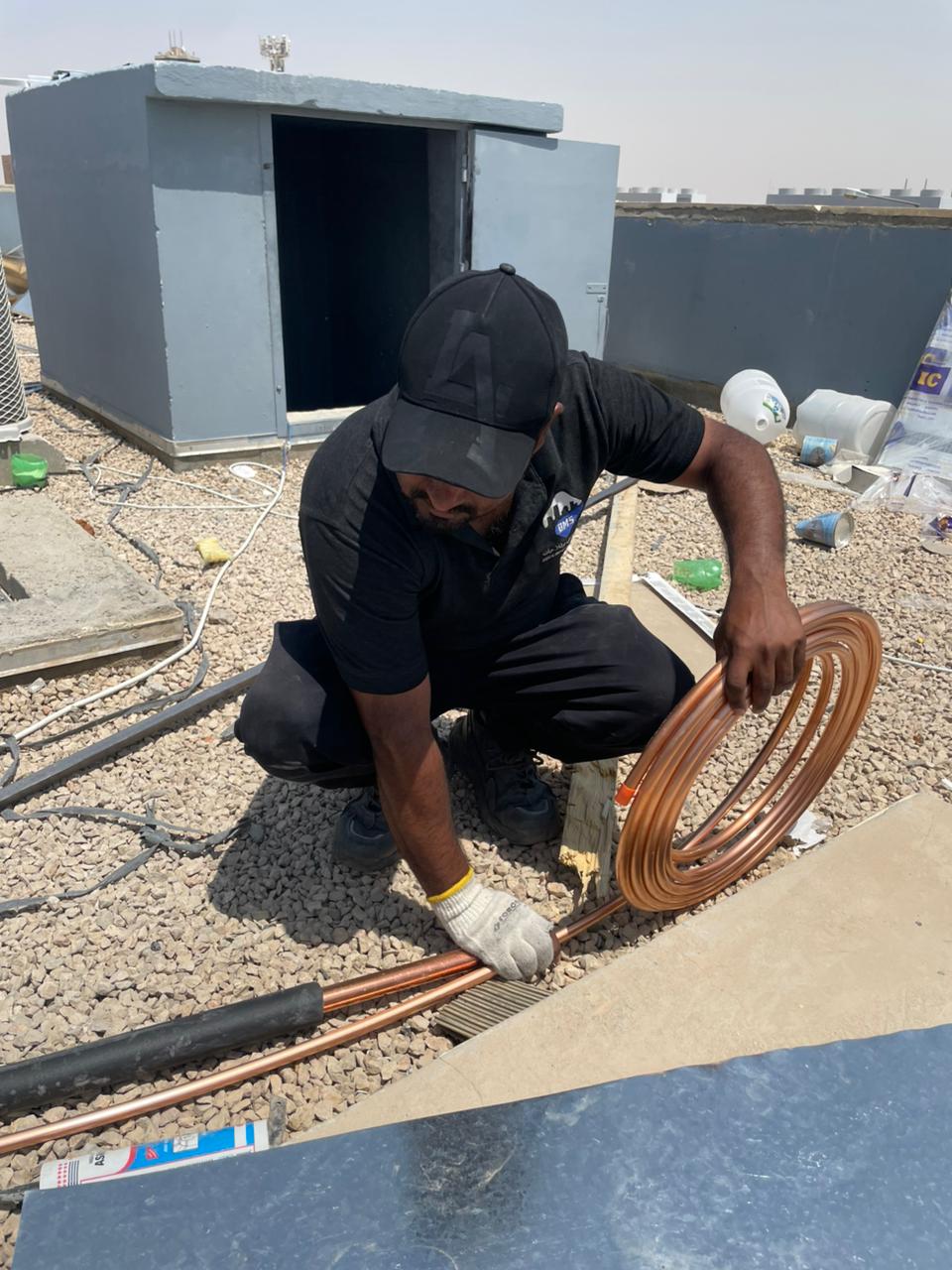

BMS technician uncoiling copper refrigerant pipe on the roof ahead of installation
Copper refrigerant lines set out before the roof-to-room runs

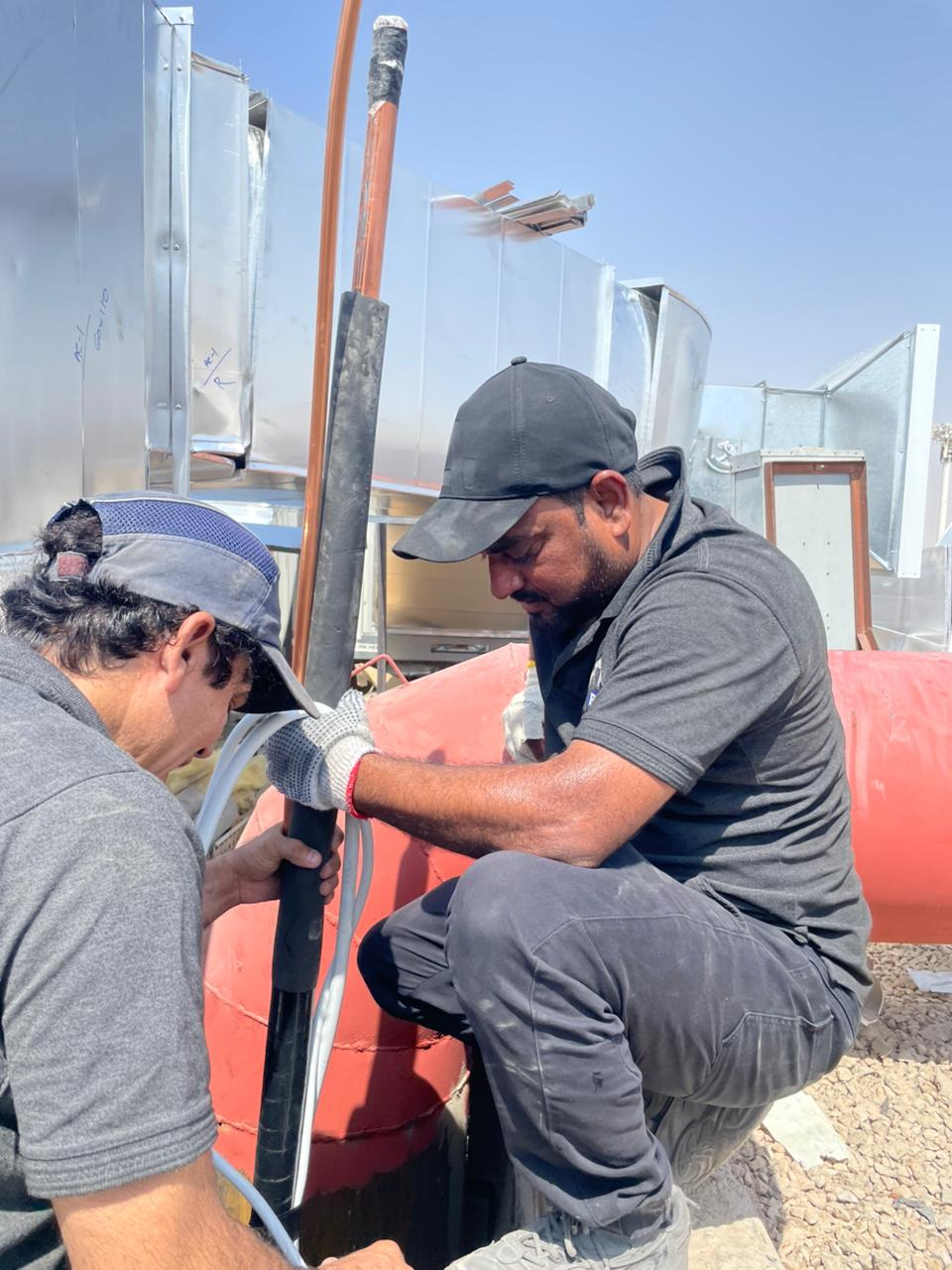

Two BMS technicians fitting insulation to a copper suction line on the rooftop
Suction lines insulated and sealed on the rooftop route
Two BMS technicians terminating cables inside a refrigeration control panel
Control panel wiring and terminations

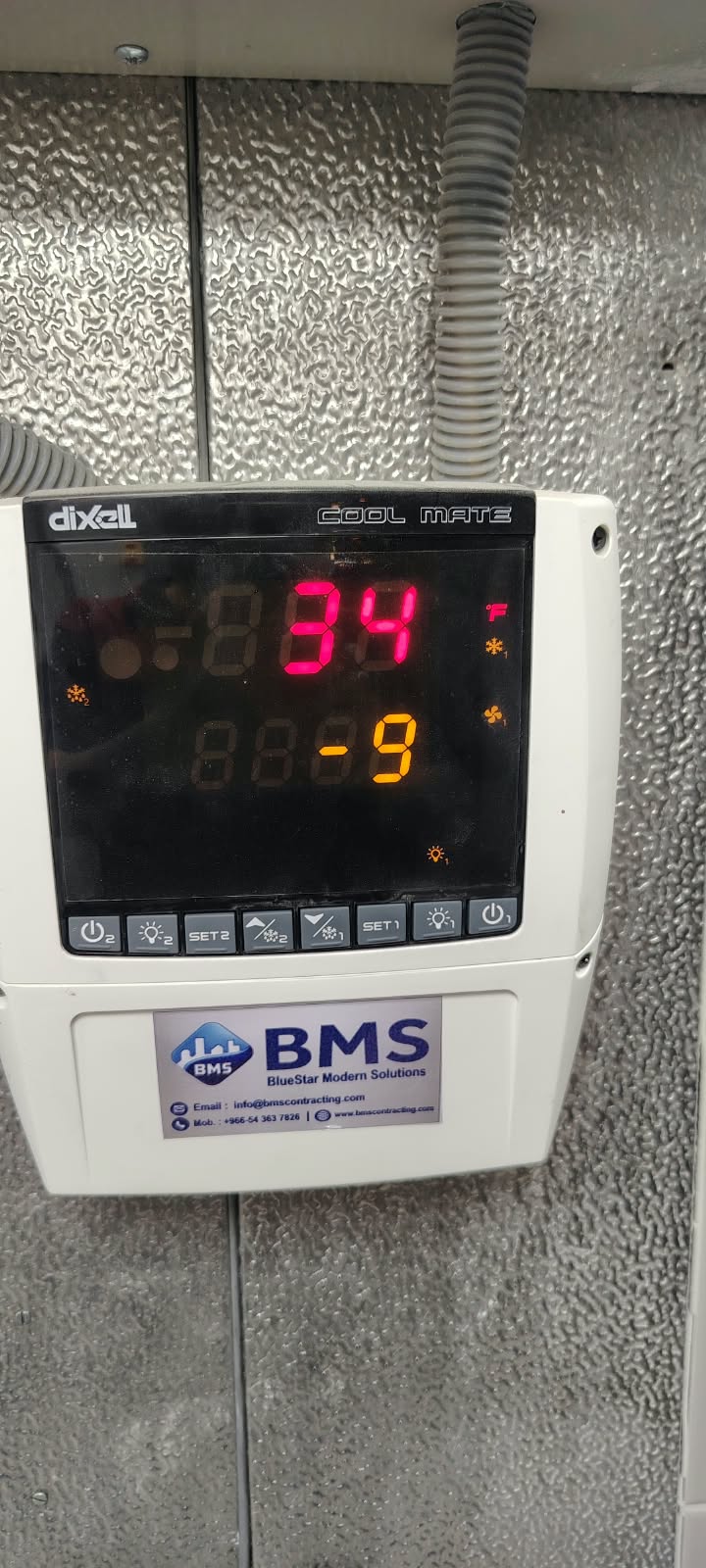

Cold-room temperature controller showing chiller and freezer set points after commissioning
Room controllers commissioned to the agreed set points

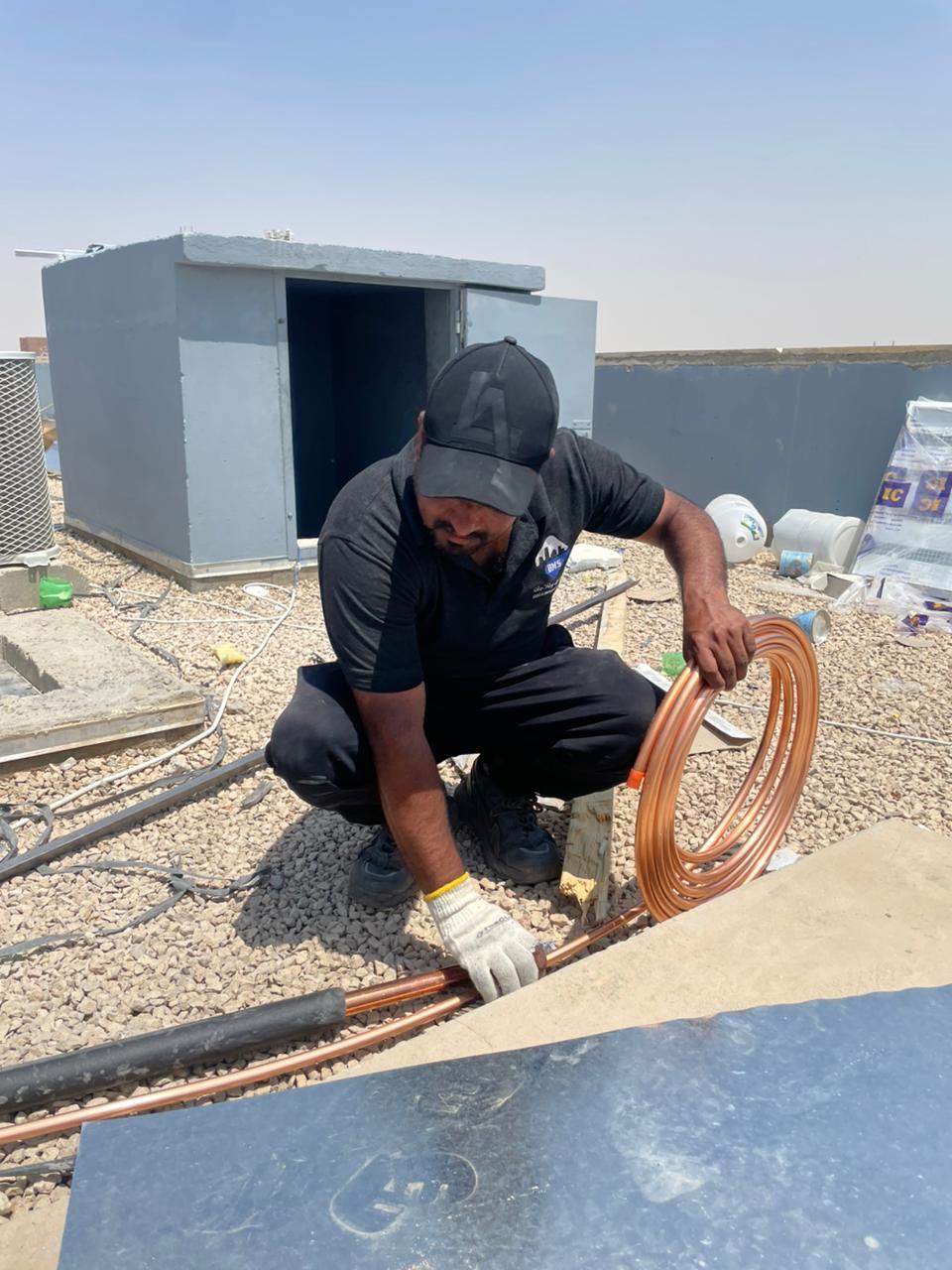

BMS technician uncoiling copper refrigerant tube on the roof beside the plant enclosure
Copper tube uncoiled for the roof runs
BMS technicians installing rooftop ductwork alongside a Carrier air-handling unit
Rooftop ductwork alongside the air handling unit
Close-up of a technician working on the contactors inside the refrigeration control panel
Contactor wiring in the control panel
Outcome

Value delivered

One contractor covering supply, installation and commissioning — so the restaurant opened its cold storage without coordinating separate trades.
